SBI-FL/FLS/FLL

当前位置

首页 > 产品中心 > 数控系统

SBI-FL/FLS/FLL

详情

Model	Download
SBI15 FLS
SBI15 FL
SBI15 FLL
SBI20 FLS
SBI20 FL
SBI20 FLL
SBI25 FLS
SBI25 FL
SBI25 FLL
SBI30 FLS
SBI30 FL
SBI30 FLL
SBI35 FLS
SBI35 FL
SBI35 FLL
SBI45 FL
SBI45 FLL
SBI55 FL
SBI55 FLL
SBI65 FL
SBI65 FLL

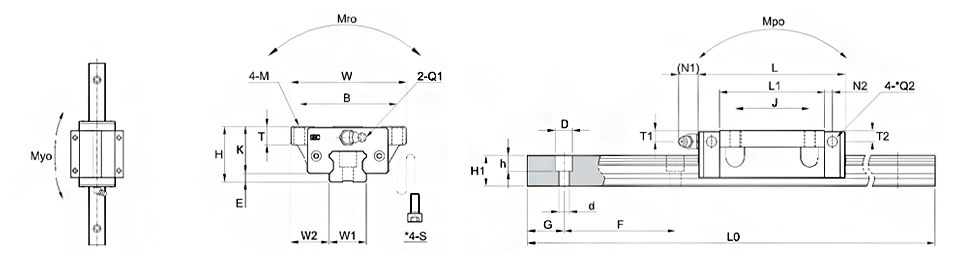

Mounting dimension				Block dimensions													Rail dimension									Basic load rating [kN]		Permissible static moment [kN•m]			Mass
H	W	L	E	Mounting tap hole				L1	T±1	K	Grease fitting						W1	W2	H1	F	Bolt hole			G	Max length of rail LO	Basic load rating [kN]		Permissible static moment [kN•m]			Block [kg]	Rail [kg/m]
H	W	L	E	B	J	M	*S	L1	T±1	K	T1	N1	T2	N2	Q1	*Q2	W1	W2	H1	F	d	D	h	G	Max length of rail LO	C	Co	Mro	Mpo	Myo	Block [kg]	Rail [kg/m]
24	47	56.8	3	38	30	M5	M4	38.2	11	21	4.5	5.5	3.8	3.8	M4x0.7	ø3.5	15	16	13	60	4.5	7.5	5.5	20	3000	12.3	18.3	0.13	0.08	0.08	0.20	1.3
24	47	63.8	3	38	30	M5	M4	45.2	9	21	4.5	5.5	3.8	3.8	M4x0.7	ø3.5	15	16	13	60	4.5	7.5	5.5	20	3000	14.1	24.1	0.16	0.17	0.17	0.24	1.3
24	47	79.4	3	38	30	M5	M4	60.8	9	21	4.5	5.5	3.8	3.8	M4x0.7	ø3.5	15	16	13	60	4.5	7.5	5.5	20	3000	17.1	31.7	0.21	0.29	0.29	0.30	1.3
30	63	73.8	4.6	53	40	M6	M5	51.8	12	25.4	6	12	5.8	5	M6x0.75	ø3.5	20	21.5	16.5	60	6	9.5	8.5	20	4000	20.2	29.1	0.29	0.18	0.18	0.44	2.2
30	63	78.8	4.6	53	40	M6	M5	56.8	12	25.4	6	12	5.8	5	M6x0.75	ø3.5	20	21.5	16.5	60	6	9.5	8.5	20	4000	22.2	38.2	0.36	0.33	0.33	0.46	2.2
30	63	96.4	4.6	53	40	M6	M5	74.4	12	25.4	6	12	5.8	5	M6x0.75	ø3.5	20	21.5	16.5	60	6	9.5	8.5	20	4000	27.9	50	0.47	0.56	0.56	0.60	2.2
36	70	83	5.5	57	45	M8	M6	61	13	30.5	6	12	5	5	M6x0.75	ø3.5	23	23.5	20	60	7	11	9	20	4000	28.9	42.8	0.49	0.32	0.32	0.66	3
36	70	92	5.5	57	45	M8	M6	70	13	30.5	6	12	5	5	M6x0.75	ø3.5	23	23.5	20	60	7	11	9	20	4000	31.5	52.1	0.56	0.56	0.56	0.75	3
36	70	108	5.5	57	45	M8	M6	86	13	30.5	6	12	5	5	M6x0.75	ø3.5	23	23.5	20	60	7	11	9	20	4000	36.7	64.4	0.69	0.84	0.84	0.80	3
42	90	96.8	7	72	52	M10	M8	68.8	15.5	35	8.5	12	7.8	5	M6x0.75	ø5.7	28	31	23	80	9	14	12	20	4000	39.2	57.7	0.80	0.49	0.49	1.08	4.25
42	90	107.6	7	72	52	M10	M8	79.6	15.5	35	8.5	12	7.8	5	M6x0.75	ø5.7	28	31	23	80	9	14	12	20	4000	42.8	65.4	0.85	0.77	0.77	1.25	4.25
42	90	131.6	7	72	52	M10	M8	103.6	15.5	35	8.5	12	7.8	5	M6x0.75	ø5.7	28	31	23	80	9	14	12	20	4000	51.3	84.7	1.10	1.30	1.30	1.65	4.25
48	100	108.2	8	82	62	M10	M8	78.2	15	40.5	8	12	8	6	M6x0.75	ø5.7	34	33	26	80	9	14	12	20	4000	52.0	73.3	1.24	0.71	0.71	1.53	6.02
48	100	124.6	7.5	82	62	M10	M8	94.6	15	40.5	8	12	8	6	M6x0.75	ø5.7	34	33	26	80	9	14	12	20	4000	59.5	89.1	1.42	1.28	1.28	1.92	6.02
48	100	152.6	7.5	82	62	M10	M8	122.6	15	40.5	8	12	8	6	M6x0.75	ø5.7	34	33	26	80	9	14	12	20	4000	71.3	115.3	1.83	2.12	2.12	2.43	6.02
60	120	142	9	100	80	M12	M10	108	18	51	10.5	13.5	9.3	6.5	PT1/8	ø5.7	45	37.5	32	105	14	20	17	22.5	4000	79.2	116.3	2.48	1.90	1.90	3.25	9.77
60	120	174	9	100	80	M12	M10	140	18	51	10.5	13.5	9.3	6.5	PT1/8	ø5.7	45	37.5	32	105	14	20	17	22.5	4000	94.8	150.5	3.21	3.14	3.14	4.40	9.77
70	140	172.4	12	116	95	M14	M12	131	22	58	12	13	12	8	PT1/8	ø8.7	53	43.5	38	120	16	23	20	30	4000	127.3	181.8	4.81	2.97	2.97	5.08	13.72
70	140	211.8	12	116	95	M14	M12	170.4	22	58	12	13	12	8	PT1/8	ø8.7	53	43.5	38	120	16	23	20	30	4000	147.9	224.5	5.95	4.78	4.78	6.58	13.72
90	170	219.8	19	142	110	M16	M14	170.4	26	71	14	13	14	10	PT1/8	ø8.7	63	53.5	53	150	18	26	22	35	4000	188.3	261.7	8.24	5.57	5.57	10.17	23.17
90	170	272.2	19	142	110	M16	M14	222.8	26	71	14	13	14	10	PT1/8	ø8.7	63	53.5	53	150	18	26	22	35	4000	232.5	354.1	11.15	9.86	9.86	13.29	23.17
